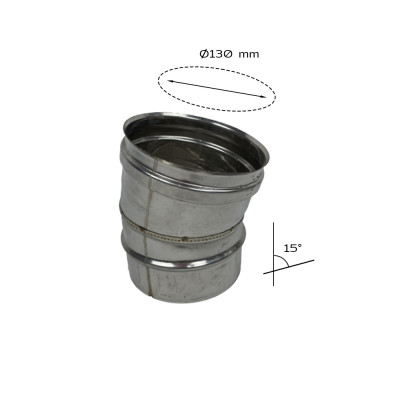

15-degree elbow bend

15° Elbow Bend, AISI 304 Stainless Steel, Ø130 mm – Slight Bend for Wood-Burning Ovens and Stoves

Technical specifications

• Material: AISI 304 stainless steel
• Diameter: 130 mm
• Angle: 15°
• Thickness: 0.5 mm (5/10)
• Welding: TIG process, by fusion of adjacent edges without filler material
• Finish: Polished stainless steel, resistant to high temperatures
• Type: Single-wall male/female bend

Compatibility: Component designed for slight axis deviations in the vertical and sub-horizontal sections of flue systems. Compatible with Alfonso Forni 2-, 4- and 6-pizza wood-fired and hybrid ovens from the domestic range and with the Alfonso Forni Esmeralda and Eleonora stoves, all with a Ø 130 mm flue outlet. It integrates perfectly with all the straight sections and accessories in the Alfonso Forni Ø 130 mm range. Suitable for solid fuel (wood) and wood/gas hybrid ovens.

Key benefits

• Smooth and precise deflection: the reduced angle of 15° is ideal for minimal adjustments to the flue path, minimising draught loss and ensuring maximum smoke flow.
• High-temperature resistance: AISI 304 steel ensures high thermal and corrosion resistance for long-lasting durability.
• Perfect smoke seal: the male/female joint and TIG welding ensure a completely airtight seal and optimal draught.

Installation notes: The bend must be connected to the straight sections, ensuring the correct orientation of the angle relative to the flue path. The use of high-temperature gaskets at the joints and fixing with certified clamps is recommended. Installation must be carried out in accordance with current UNI EN 1856 standards for solid fuel systems.

Certifications: ISO 9001:2015 certified and compliant with EC regulations. Made in Italy.
