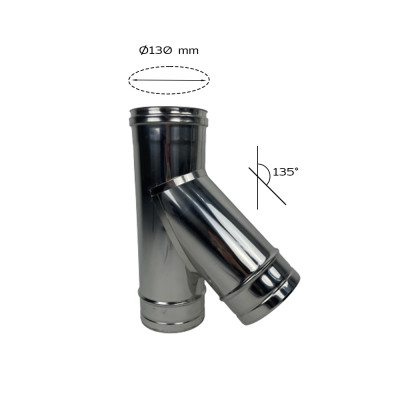

Braga 135-degree Y-joint

Braga 135° Y-shaped connector, AISI 304 stainless steel, Ø130 mm – Chimney connection for wood-burning ovens and stoves

Technical specifications

• Material: AISI 304 stainless steel
• Diameter: 130 mm
• Angle: 135° (branch at 45° to the vertical axis)
• Thickness: 0.5 mm (5/10)
• Finish: Polished stainless steel, heat-resistant
Type: Single-wall male/female Y-joint

Compatibility: Connection piece designed to connect the flue to the vertical chimney at a 135° angle, ensuring a gentler bend than a 90° T-joint. Compatible with Alfonso Forni 2-, 4- and 6-pizza wood-fired and hybrid ovens from the domestic range and with the Alfonso Forni Esmeralda and Eleonora stoves, all with a Ø 130 mm flue connection. It integrates perfectly with all the linear components and accessories in the Alfonso Forni Ø 130 mm range. Suitable for solid fuel (wood) and wood/gas hybrid ovens.

Key benefits

• Smooth deflection and optimal draught: the 135° angle (45° from the vertical) reduces turbulence in the flue gas flow compared to a 90° flue, promoting a more efficient and uniform draught.
• High-temperature resistance: AISI 304 stainless steel guarantees high thermal and corrosion resistance for long-lasting durability.
• Perfect smoke seal: the male/female joint ensures a completely airtight seal and a secure connection between the flue duct and the vertical chimney.

Installation notes: The connector must be positioned at the junction between the sub-horizontal flue and the vertical section of the chimney, ensuring the correct 135° orientation of the outlet. The use of high-temperature gaskets at the joints and fixing with certified clamps is recommended. Installation must be carried out in compliance with current UNI EN 1856 standards for solid fuel systems.

Certifications: ISO 9001:2015 certified and compliant with CE regulations. Made in Italy.
