Valve assembly

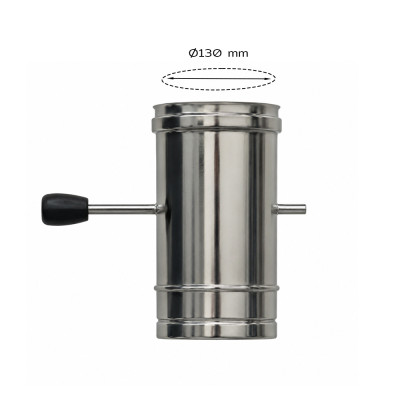

AISI 304 Stainless Steel Valve Assembly, Ø130 mm – Flue Gas Flow Control and Shut-off

Technical specifications

• Material: AISI 304 stainless steel.
• Diameter: 130 mm.
• Thickness: 0.5 mm (5/10).
• Function: opening and closing of the flue gas passage.
• Finish: polished stainless steel, resistant to high temperatures.
• Type: linear element with control valve.

Compatibility: Component designed for use in flue systems and flue ducts. Compatible with Alfonso Forni 2-, 4- and 6-pizza wood-fired and hybrid ovens from the domestic range and with the Alfonso Forni Esmeralda and Eleonora stoves, all with a Ø 130 mm flue connection. Also suitable for gas use, when it is necessary to seal the opening and prevent heat loss.

Key benefits

• Flow control: the valve allows the flue gas passage to be opened or closed quickly and precisely.
• Improved thermal insulation: closing the flue reduces heat loss and improves the system’s efficiency.
• Easy integration: it fits into the Alfonso Forni Ø 130 mm flue system, maintaining consistency with the other accessories.

Installation notes: The valve unit must be installed in the section of the flue duct best suited to draught regulation and closing the flue gas passage. Before installation, check the correct orientation of the lever or control and ensure there is no interference with other components. Installation must be carried out in accordance with current regulations and the manufacturer’s instructions.

Certifications: ISO 9001:2015 certified and compliant with CE regulations. Made in Italy.
