ALFONSO 4 PIZZE FULL OPTIONAL
External measures (centimeters):
Height about 43 cm + about 60 cm flue (1 half metre length flue and a chinese hat chimney).
Length 81 cm;
Depth 90 cm;
External roof : galvanized steel painted in dark brown colour.
Internal measures:
Height about 23cm.
Width about 76 cm;
Depth about 81 cm (-15 cm of space between the mouth and the smoke collection hopper; the oven mouth measures 40 cm in width and about 23 cm in height while the hopper measures 53 cm in width, 25 cm in height and 15 cm deep).
Inside it is made of Aisi 430 STAINLESS STEEL.
Smoke output: Ø 130mm; 150 cm linear element + 1 chinese hat terminal INCLUDED with the oven!
Weight: About 100 kg.
This FULL OPTIONAL version has 2 more Optional accessories than ALFONSO 4 PIZZE and these are:
- A door with handle that you can lay at the entry of the oven;
- A pyrometer or thermometer calibrated up to 500°C, to observe the temperature reached by the wood oven while you are cooking.
- Weight
- Color
- Dimensioni Esterne
- Dimensioni Camera di Cottura
- Tipo di cottura
- cottura diretta
- Camera di cottura
- Livelli di cottura
- Spessore dei mattoni refrattari utilizzati in camera di cottura
- Pirometro
- Portina chiuderna
- Girarrosto
- Barbeque BBQ
- Vetro in camera combustione
- Tipi di metallo utilizzati nella costruzione
- ACCIAIO INOX 304, ACCIAIO NERO AL CARBONIO, ACCIAIO AISI 430 e ACCIAIO ZINCATO.
- Uscita Fumi
- Accessori in Omaggio
- Barra parafiamma
- Si (è un optional)
- Coibentazione Superiore
- coibentato con fibro ceramica che ha uno spessore variabile da 3 cm a 6 cm
- Coibentazione Inferiore
- coibentato con scamotek e silicato di calcio da 3 cm
- Spessore dei metalli utilizzati nella costruzione
WOOD-FIRED OVEN
ALFONSO 4 PIZZE FULL OPTIONAL
CHARACTERISTICS OF THIS MODEL

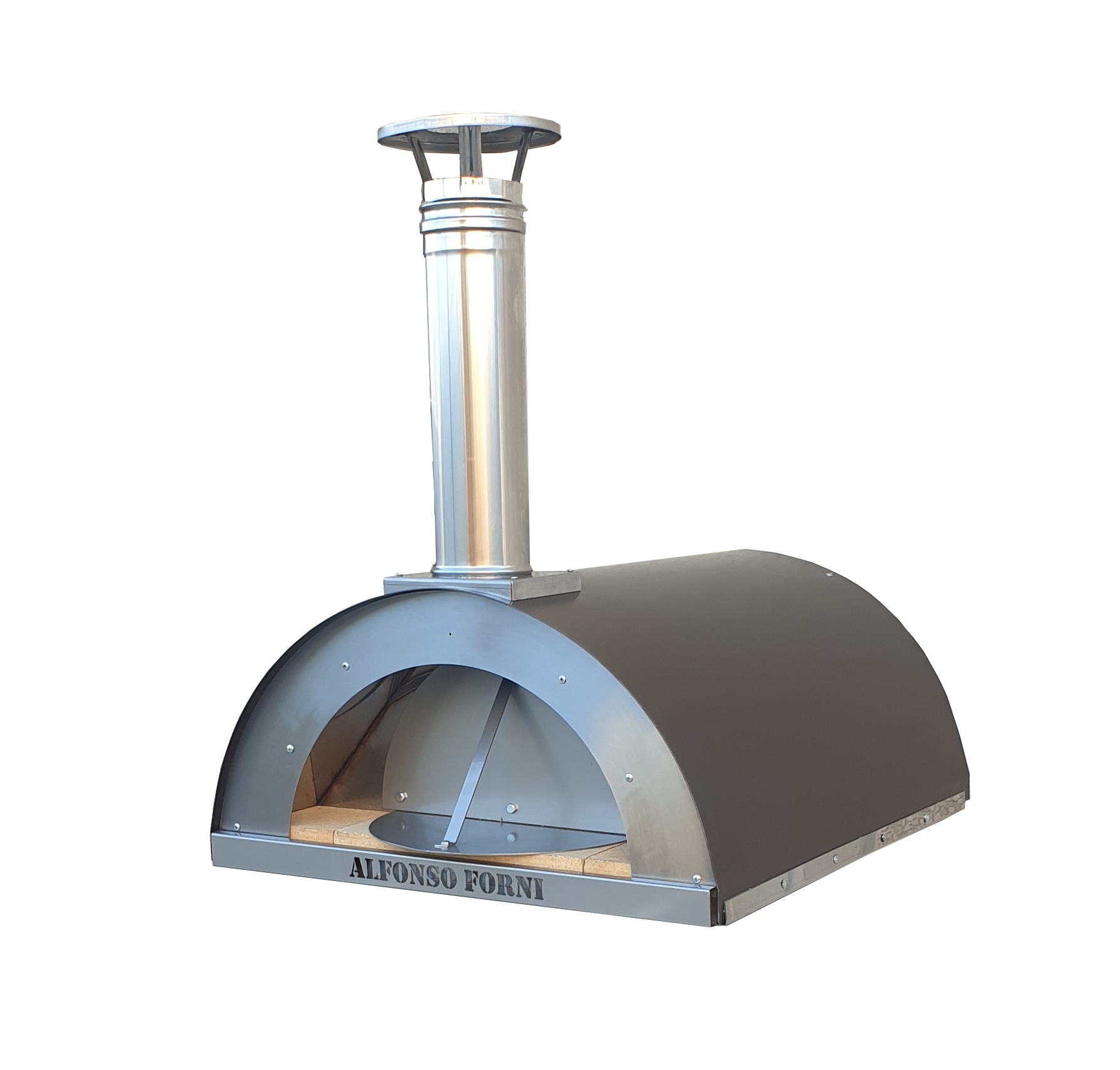

ALFONSO 4 PIZZE FULL OPTIONAL is a wood-fired oven with direct cooking or direct fire, perfect for your garden or for your kitchen, tavern, porch, outbuilding, patio! It is equipped with a dome roof in steel and painted in a dark brown colour, while internally it is made of AISI 430 Steel. Between the cavaties, steel and metal sheet, with an insulation of 30 of 96 density and Skamotec under the hob with refractory bricks. It's the perfect wood fired oven for every home and for all pizza lovers !
DESCRIPTION
Le principali caratteristiche che descrivono questo forno a legna sono:
- Wood-burning oven equipped with a dome roof in dark brown painted steel, with a handled door and a pyrometer/thermometer calibrated up to 500°C;
- Type of cooking: direct fire wood-burning oven, direct cooking (the wood burns in the cooking chamber and the dishes are "wood fired" cooked);
- Cooking chamber: equipped with food-grade refractory bricks placed on the base to form an excellent refractory cooking surface on which to cook dishes in direct contact such as pizza, bread, etc... and also to place trays;
STUDIED AND DESIGNED TO OPTIMIZE THE COOKING OF PIZZAS, BREAD AND OTHERS
This wood-burning oven has been built with carefully studied measures that facilitate the introduction of wood and the insertion and removal of food in a completely simple and fast way. The mouth of the oven, reduced almost to a minimum to avoid the dispersion of heat towards the outside in the best possible way, measures 40 cm in width and approximately 23 cm in height. The hopper (fume collection) measures 25 (H) x 53 (L) x 15 (D) cm, specifically designed to favor the oxygenation of the cave. Between the mouth of the kiln and the hopper is the fume emission hood, as in classic brick kilns. The hob is made of the best refractory bricks that we have only in Sicily, 2.2 cm thick and laid on a calcium silicate-Skamotec honeycomb structure: this allows a constant and homogeneous temperature of the pizzas, as well as very high insulation of the furnace floor.
->Don't miss it! OPTIONAL OF THE EXTRA-HARD REFRACTORY BRICK
In the photo above you can see a special hob inside the wood-burning oven: it's the famous EXTRA-HARD REFRACTORY BRICK! These are very resistant 3 cm thick refractory bricks, made with the best mixtures of clays and volcanic sand. These refractory bricks can be chosen by the customer at a small additional cost and will be inserted in place of the traditional 2.2 cm refractory bricks to give the wood-burning oven a very resistant hob that is difficult to crack and we recommend them to those who intend to use the oven wood-burning mainly for pizzas and bread, dishes for which the hob is mostly used. The EXTRA-HARD REFRACTORY BRICK is an Optional that goes to customize your wood oven; add it during the purchase together with your ALFONSO 4 PIZZE FULL OPTIONAL by visiting the OPTIONAL OVENS section or Click here ! You will receive the oven with the EXTRA-HARD REFRACTORY BRICK already assembled in the oven.
SPACIOUS UP TO 4 PIZZAS, VERY EASY TO USE!
The cooking chamber is large enough to cook up to 4 pizzas! For example, you can cook bread or pizza directly on the refractory surface and all the dishes you want in a pan, making the most of this beautiful and versatile wood-burning oven. The use is very simple: just use two pieces of wood and small sticks with the devil to put it into operation. Then you just have to wait for it to reach temperature and understanding it is very simple, because you just need to keep an eye on the flue: this, in fact, once the temperature of 450°/500°C is reached (which is reached only 5 minutes after having fired) , darkens just like in the ancient traditional wood-burning ovens with the bricks turning white! But you can also observe the temperature reached by the wood oven thanks to the pyrometer or thermometer, which is inserted in this model.
To cook a good pizza, however, you also need the right accessories: this is why Alfonso Forni recommends adding to the purchase the KIT OF PEELS including the peel-holder bracket to be fixed to the wall (available with 4 peels: square peel, round peel shovel for embers and wood push shovel or with 6 shovels or complete with oven broom with brass bristles and round pizza stick, in addition to the 4 shovels already mentioned) and the FLAME BAR, a very useful accessory that contains the hearth in a side of the oven, helping to keep the firebrick hob clean.
The Alfonso Forni's flame bar is made of steel and is perforated to allow the passage of the right amount of air for combustion. You can add the accessories when you are placing your order here on the site or by clicking here: ->

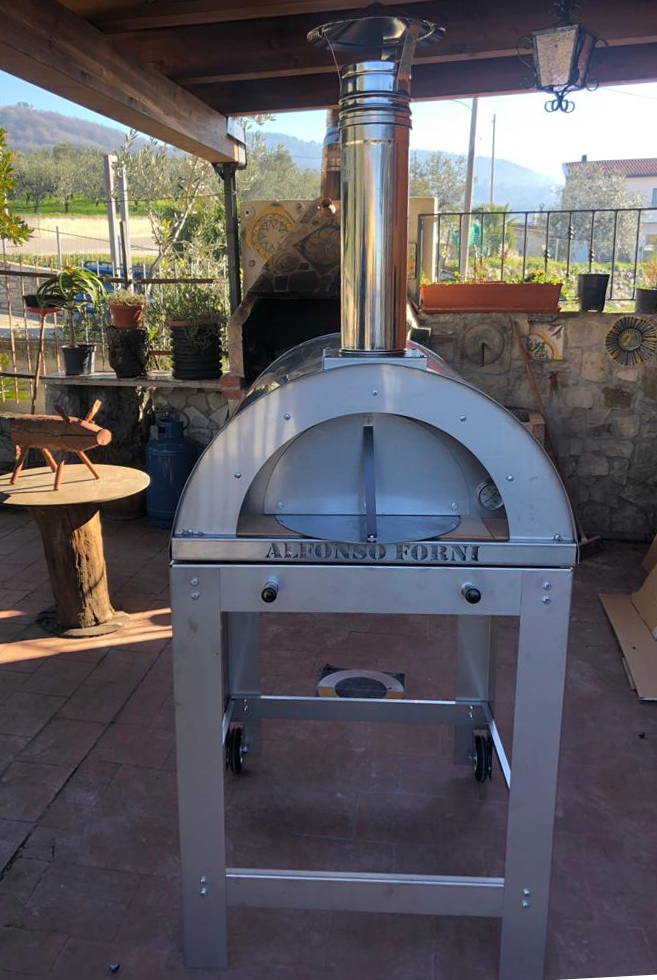

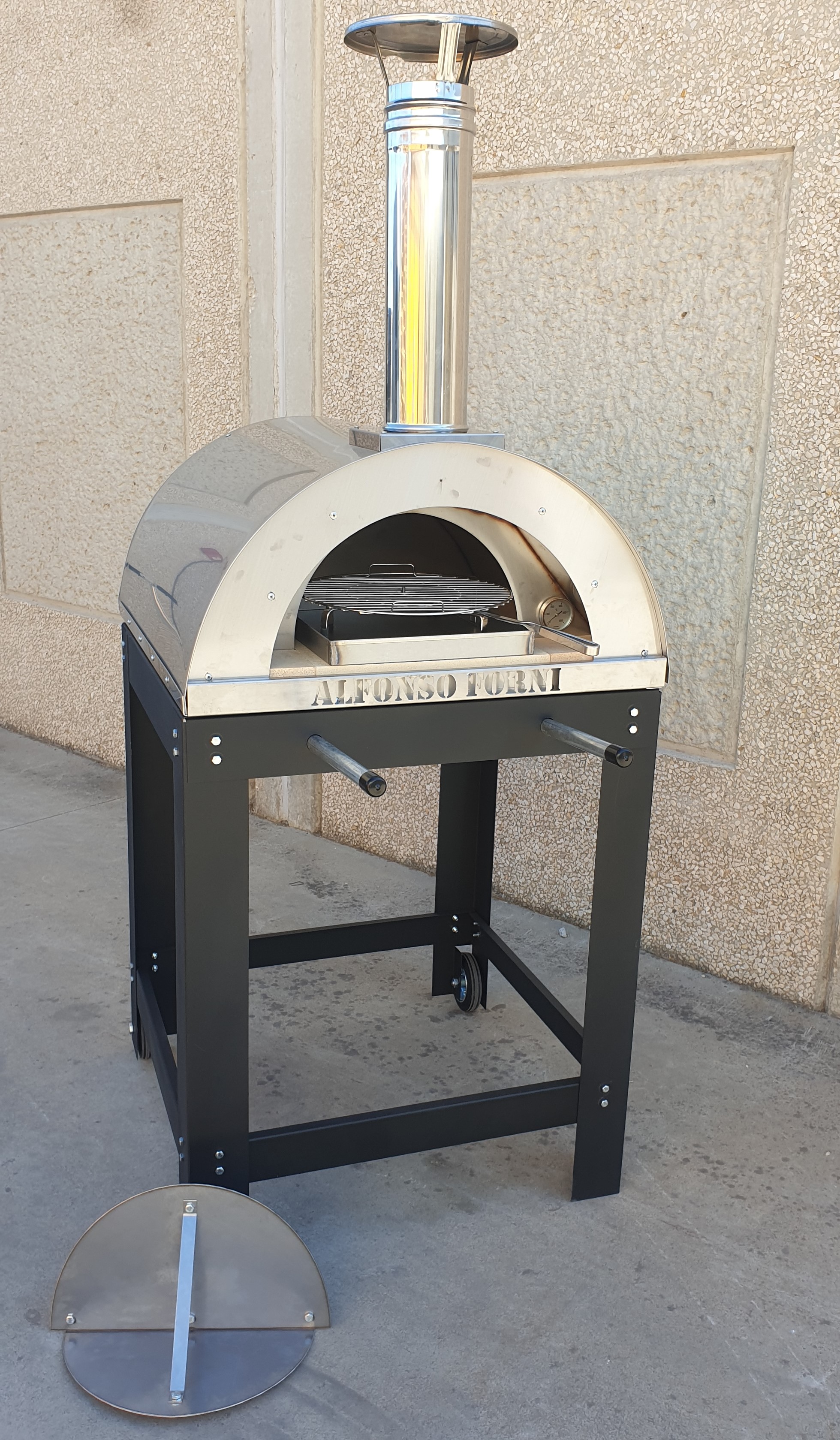

If you don't have a shelf to place your ALFONSO 4 PIZZE FULL OPTIONAL,we suggest you to take a look to our ALFONSO 4 PIZZE FULL OPTIONAL WITH WHEELED SUPPORT model: it is the same wood-burning oven, but in addition it is equipped with a very valid WHEELED SUPPORT with and rear wheels handles on which to place the oven and which you can see in the central picture above; it is made of black painted iron and will make it easier for you to move your wood-burning oven, for example from the veranda to the garden. If, on the other hand, you would like to have this wood-burning oven entirely in stainless steel, therefore with both the roof and the wheeled support in stainless steel,
CLICK HERE TO SEE THE "ALFONSO 4 PIZZE FULL OPTIONAL WITH stainless steel ROOF AND WHEELED SUPPORT"
NOT ONLY PIZZAS: YOU CAN ROAST JUST LIKE ON A BBQ!
(In the picture above: ALFONSO 4 PIZZA FULL OPTIONAL with extra-hard refractory brick, round rotating bbq grill and pan 50x35x4 cm)

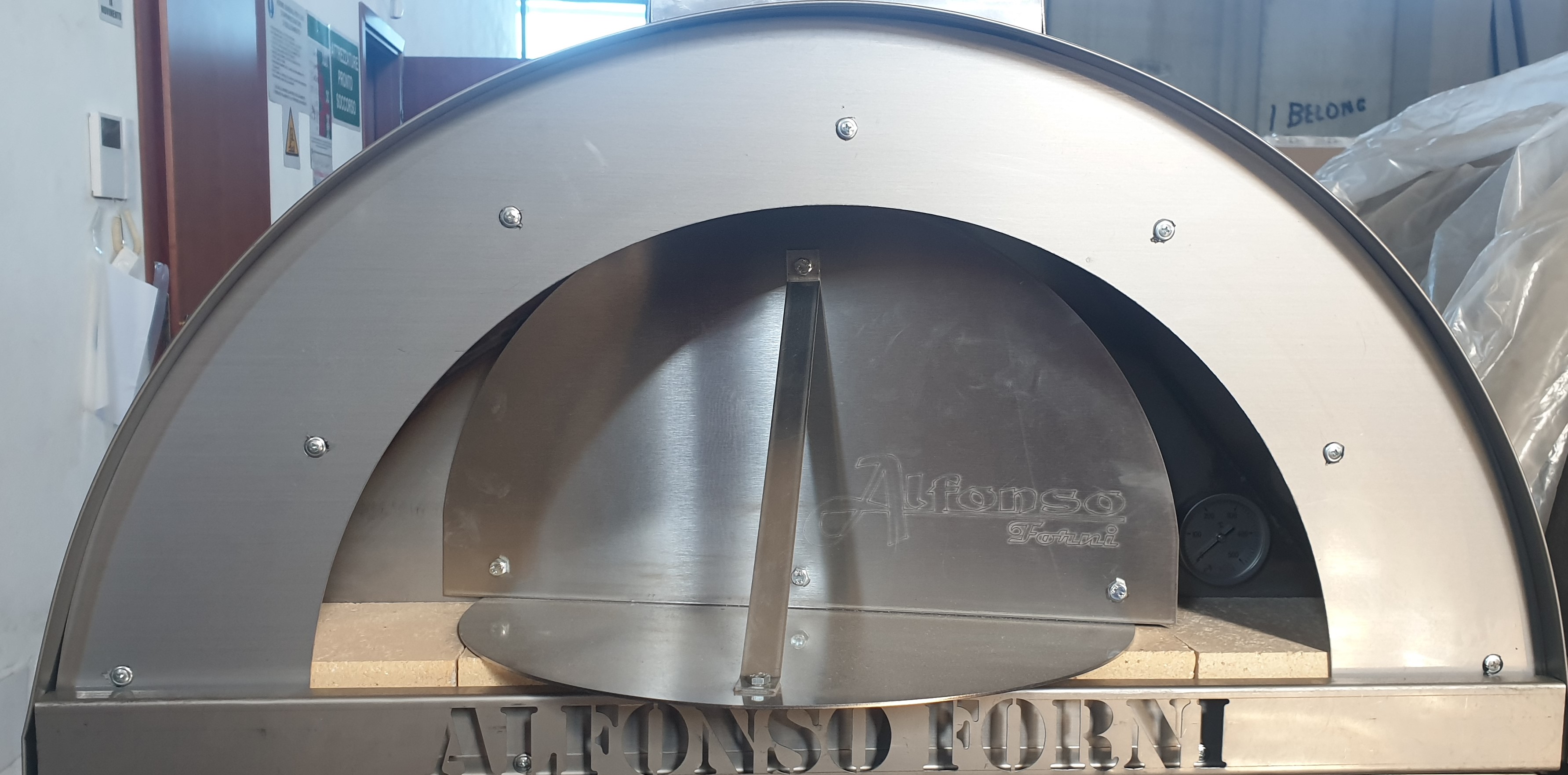

PRACTICAL CLOSING DOOR THAT HELPS TO KEEP THE HEAT IN THE CAVE OF THE WOOD-BURNING OVEN
This model is also equipped with a very useful door/closer that can be placed in front of the oven mouth, thus conserving the heat in the cave, which is well insulated with rock wool. If you want to keep the heat in, simply rotate this door to let oxygen in: infact, it acts as a heat attenuator and can be used very well during the cooking phase of the pizzas, to save wood!
FUMES EXHAUST OUTSIDE THE WOOD-BURNING OVEN CAVE
We have installed the flue outside and not inside: in this way the cave does not empty itself of the stored heat. Between the mouth of the kiln and the hopper is the fume emission hood, as in classic brick kilns. The smoke outlet has a diameter of 130 mm.
You also will receive for FREE with the purchase 1 half-metre flue and 1 chinese hat model chimney pot*!
TECHNICAL PRODUCT SHEET
USEFUL INFORMATIONS!
VISIT OUR FULL SECTION OF ACCESSORIES TO ADD PEELS, TRAYS OF OTHER SIZES OR EVERYTHING YOU MAY NEED TO SHIP EVERYTHING TO YOUR OVEN, IN A SINGLE ORDER! ALSO VISIT THE FLUE SECTION TO ADD FLUES AND ALL THE FLUE ACCESSORIES YOU MAY NEED AND, IF YOU WANT TO BE HELPED TO PURCHASE THE RIGHT CHIMNEY, DO NOT HESITATE TO CONTACT OUR TECHNICAL ASSISTANCE SERVICE ALWAYS ACTIVE ON +39 3791579517
