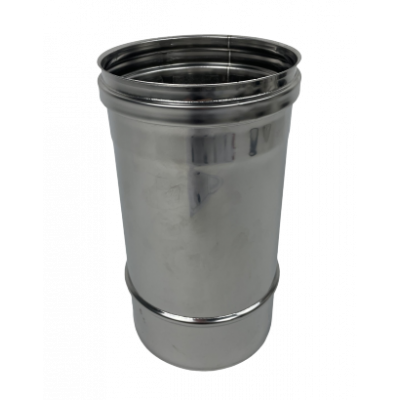

Flue pipe, height 250 mm, diameter 180 mm

AISI 304 Stainless Steel Flue Pipe, Ø180 mm – Straight Pipe, H 245 mm, for professional oven flue systems

Technical specifications

• Material: AISI 304 stainless steel
• Diameter: 180 mm
• Height: 245 mm
• Thickness: 0.5 mm (5/10)
• Finish: Exposed stainless steel, smooth surface inside and out
• Type: Single-wall linear element

Compatibility: Linear element designed for use in vertical and sub-horizontal sections of flue systems. Compatible with the Professional, Alfonso 12 Pizze and BBQ 1200 ranges, with a Ø 180 mm connection. Suitable for professional installations in indoor and outdoor environments.

Key benefits

• High-temperature resistance: AISI 304 stainless steel guarantees high resistance to corrosion and combustion gas temperatures, ensuring long-lasting durability.
• Optimal smoke containment: the 0.5 mm walls ensure efficient smoke channelling without leakage and a constant draught.
• Easy installation: the component connects easily to the other parts of the Alfonso Forni Ø 180 mm flue system, reducing installation time.

Installation notes: The 245 mm pipe is compatible with all other sections of the Alfonso Forni Ø 180 mm flue pipe range. Before installation, check that the flue route complies with the safety distances required by current regulations and that the draught is adequate for the oven’s power. For sub-horizontal sections, a minimum upward slope of 3% towards the chimney is recommended.

Certifications: ISO 9001:2015 certified and compliant with EC regulations. Made in Italy.
