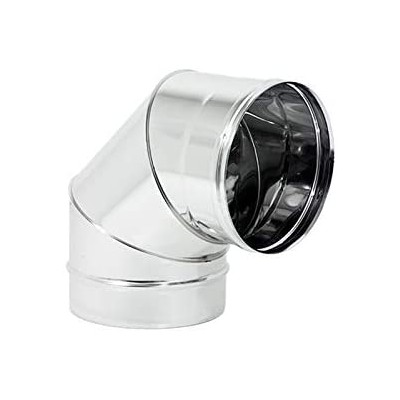

90-degree elbow bend, 150 mm diameter
90° elbow bend in AISI 304 stainless steel, diameter 150 mm, thickness 0.5 mm. Ideal for changing the direction of flue systems in wood-fired ovens and stoves. Compatible with the Alfonso 4 and 10-pizza wood-fired and hybrid ovens from the Professional range. ISO 9001:2015 certified, CE compliant. Made in Italy.
PayPal (SSL) - Bank/postal transfer and instalments
Throughout Italy and around the world
Handcrafted products without intermediate steps
90° Stainless Steel Elbow (AISI 304) Ø150 mm – Offset Elbow for professional oven flue systems
Technical specifications
- Material: AISI 304 stainless steel
- Diameter: 150 mm
- Angle: 90° (4 sections)
- Thickness: 0.5 mm (5/10)
- Welding: TIG process, by fusion of adjacent flanges
- Finish: Exposed stainless steel, smooth internal and external surface
- Type: Single-wall male/female bend
Compatibility: Component designed for axis deviation in vertical and sub-horizontal sections of flue systems. Compatible with the Alfonso 4 and 10-pizza wood-fired and hybrid ovens from the Professional range. Integrates perfectly with all linear elements and accessories from the Alfonso Forni Ø 150 mm range.
Key benefits
- Maximum installation flexibility: the 90° angle allows for orthogonal deviations of the flue duct, ideal for sharp changes of direction where architectural or structural constraints are present.
- High-temperature resistance: AISI 304 stainless steel guarantees high thermal and corrosion resistance for long-lasting durability.
- Perfect smoke containment: the male/female joint and TIG welding ensure a completely airtight seal and optimal draught.
Installation notes: The bend must be connected to the straight sections, ensuring the correct orientation of the angle relative to the flue path. The use of high-temperature gaskets at the joints and fixing with certified clamps is recommended. Installation must be carried out in compliance with current UNI EN 1856 standards for solid fuel systems.
Certifications: ISO 9001:2015 certified and compliant with EC regulations. Made in Italy.
