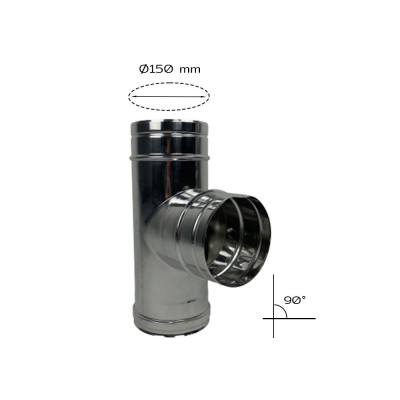

Braga 90-degree T-joint, extruded, 150 mm diameter

Braga 90° T-fitting, extruded AISI 304 stainless steel, Ø150 mm – Connection for professional oven flue systems

Technical specifications

• Material: AISI 304 stainless steel
• Diameter: 150 mm
• Angle: 90°
• Thickness: 0.5 mm (5/10)
• Manufacturing process: Extruded from a linear element (straight fitting)
• Finish: Polished stainless steel, heat-resistant
• Type: Single-wall male/female T-joint

Compatibility: Connection element designed to connect the flue to the vertical chimney at a 90° angle. Compatible with Alfonso Forni wood-burning and hybrid stoves from the professional range, all with a Ø 150 mm flue outlet. It integrates perfectly with all other linear elements and accessories in the Alfonso Forni Ø 150 mm range. Suitable for solid fuel (wood) and wood/gas hybrid stoves.

Key benefits

• Precise and robust connection: the T-shape, achieved through extrusion, guarantees perfectly regular geometry, ensuring a solid, leak-free connection between the flue and the chimney.
• High-temperature resistance: AISI 304 steel guarantees high thermal and corrosion resistance for long-lasting durability.
• Perfect smoke seal: the male/female joint ensures a completely airtight seal and optimal draught in all operating conditions.

Installation notes: The connector must be positioned at the junction between the sub-horizontal flue and the vertical section of the chimney, ensuring the correct 90° orientation of the outlet. The use of high-temperature gaskets at the joints and fixing with certified clamps is recommended. Installation must be carried out in compliance with current UNI EN 1856 standards for solid fuel systems.

Certifications: ISO 9001:2015 certified and compliant with EC regulations. Made in Italy.
