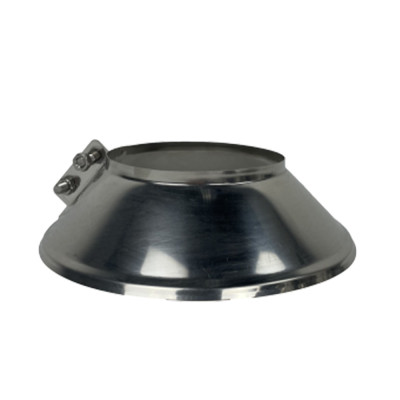

Conical collar, 180 mm diameter

AISI 304 Stainless Steel Conical Collar, Ø180 mm – Flue Penetration Waterproofing and Protection

Technical specifications

• Material: AISI 304 stainless steel.
• Diameter: 180 mm.
• Thickness: 0.5 mm.
• Type: conical collar / conical flashing.
• Function: protection and waterproofing of the roof/eaves penetration point.
• Finish: stainless steel resistant to weathering and high temperatures.

Compatibility: The conical collar is designed for the passage of the flue through roofs, roofing or eaves, where it is necessary to properly seal the point of intersection between the pipe and the structure. Compatible with the Alfonso 12 Pizze and BBQ 1200 Professional range, in systems with a Ø180 mm flue. It integrates with the elements of the Alfonso Forni flue range.

Key benefits

• Effective waterproofing: protects the critical point where the pipe passes through the roof, reducing the risk of leaks.
• Water drainage: the conical shape helps rainwater flow outwards, away from the pipe.
• Protective barrier: seals the gap between the flue and the structure, improving the overall protection of the system.

Installation notes: The conical collar must be positioned where the flue pipe passes through the roof or roof deck. It is important that it adheres correctly to the surface and is installed in such a way as to facilitate water drainage outwards. Installation must be carried out in accordance with the manufacturer’s instructions and in compliance with current regulations.

Certifications: ISO 9001:2015 certified and compliant with CE regulations. Made in Italy.
