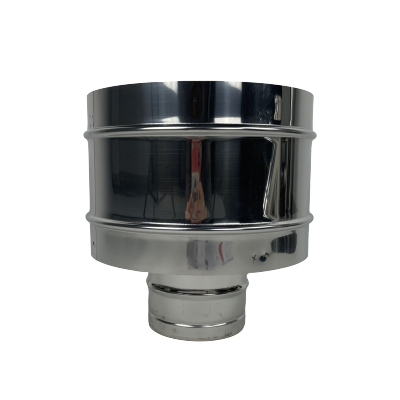

Windproof cap or bucket hat, 180 mm diameter
AISI 304 stainless steel barrel-shaped wind cap, diameter 180 mm. Flue outlet cap, ideal for particularly windy areas: the barrel shape protects against the elements, prevents backdraft and ensures a constant draught. Compatible with the Professional range, Alfonso 12 Pizze and BBQ 1200. ISO 9001:2015 certified, CE compliant. Made in Italy.
PayPal (SSL) - Bank/postal transfer and instalments
Throughout Italy and the world
Handcrafted products without intermediate steps
AISI 304 Stainless Steel Wind-Resistant Barrel Cap, Ø180 mm – Chimney Flue Terminal for Windy Areas
Technical specifications
- Material: AISI 304 stainless steel
- Diameter: 180 mm
- Thickness: 0.5 mm
- Type: Barrel-shaped windproof chimney cap
- Cap width: greater than the diameter of the flue to facilitate the flow of fumes
- Finish: Polished stainless steel, weather-resistant and heat-resistant
- Installation: Direct fitting onto the top opening of the flue
Compatibility: Flue cap designed for fitting on top of a Ø 180 mm flue as the final element of the flue system. It is designed to protect the internal walls of the chimney from the effects of the weather. Compatible with the Professional, Alfonso 12 Pizze and BBQ 1200 ranges. It integrates perfectly with all linear components and accessories from the Alfonso Forni Ø 180 mm range. Suitable for domestic installations in both indoor and outdoor environments.
Key benefits
- Optimal protection from the wind: the barrel-shaped design, wider than the flue, counteracts external turbulence from any direction, preventing smoke from returning into the interior and maintaining a stable draught even in strong winds.
- Weather protection: prevents rainwater, snow, debris and animals from entering the flue, protecting the entire system over time.
- Strength and durability: AISI 304 stainless steel guarantees high resistance to corrosion and the elements, ensuring a long service life even in outdoor installations exposed to the weather.
Installation notes: Position the wind cap directly over the top opening of the flue and secure it firmly to prevent movement caused by gusts of wind. Check that the barrel-shaped cap does not obstruct normal draught and that the distance from the final vertical section complies with regulatory requirements. Installation must be carried out in accordance with current UNI EN 1856 regulations for solid fuel systems.
Certifications: ISO 9001:2015 certified and compliant with CE regulations. Made in Italy.
