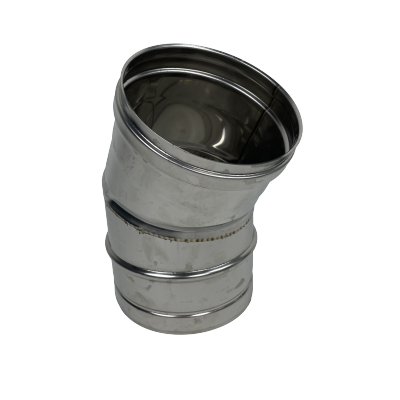

30-degree elbow bend, 130 mm diameter

30° Elbow Bend, AISI 304 Stainless Steel, Ø130 mm – Offset Elbow for Wood-Fired Ovens and Stoves

Technical specifications

• Material: AISI 304 stainless steel
• Diameter: 130 mm
• Angle: 30°
• Thickness: 0.5 mm (5/10)
• Welding: TIG process, by fusion of adjacent flanges
• Finish: Polished stainless steel, resistant to high temperatures
• Type: Single-wall male/female bend

Compatibility: Component designed for axis deviation in vertical and sub-horizontal sections of flue systems. Compatible with Alfonso Forni 2-, 4- and 6-pizza wood-fired and hybrid ovens from the domestic range and with the Alfonso Forni Esmeralda and Eleonora stoves, with a Ø 130 mm flue connection. It integrates perfectly with all linear elements and accessories from the Alfonso Forni Ø 130 mm range. Suitable for solid fuel (wood).

Key benefits

• Installation flexibility: the 30° angle allows you to bypass structural obstacles and adapt the flue duct’s route to the system’s requirements with a gentle bend.
• High-temperature resistance: AISI 304 stainless steel ensures high thermal and corrosion resistance for long-lasting durability.
• Perfect smoke seal: the male/female joint and TIG welding ensure a completely airtight seal and optimal draught.

Installation notes: The bend must be connected to the straight sections, ensuring the correct orientation of the angle relative to the flue path. The use of high-temperature gaskets at the joints and fixing with certified clamps is recommended. Installation must be carried out in compliance with current UNI EN 1856 standards for solid fuel systems.

Certifications: ISO 9001:2015 certified and compliant with EC regulations. Made in Italy.
