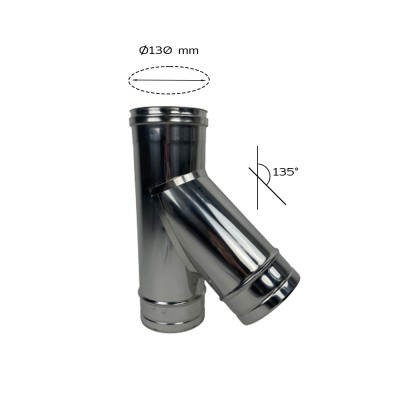

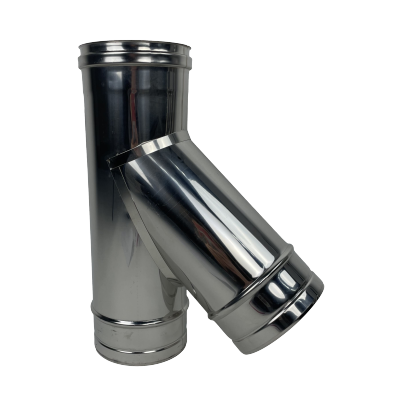

Braga 135-degree Y-joint, 130 mm diameter
135° Y-shaped flue connector made from AISI 304 stainless steel, diameter 130 mm, thickness 0.5 mm. A 135° connecting element between the flue duct and the vertical chimney. Compatible with Alfonso Forni 2-, 4- and 6-pizza wood-fired and hybrid ovens from the domestic range, and with the Alfonso Forni Esmeralda and Eleonora stoves. ISO 9001:2015 certified, CE compliant. Made in Italy.
PayPal (SSL) - Bank/postal transfer and instalments
Throughout Italy and around the world
Handcrafted products without intermediate steps
Braga 135° Y-shaped connector, AISI 304 stainless steel, Ø130 mm – Chimney connection for wood-burning ovens and stoves
Technical specifications
- Material: AISI 304 stainless steel
- Diameter: 130 mm
- Angle: 135° (branch at 45° to the vertical axis)
- Thickness: 0.5 mm (5/10)
- Finish: Polished stainless steel, heat-resistant
Compatibility: Connection piece designed to connect the flue to the vertical chimney at a 135° angle, ensuring a smoother transition than a 90° T-joint. Compatible with Alfonso Forni 2-, 4- and 6-pizza wood-fired and hybrid ovens from the domestic range and with the Alfonso Forni Esmeralda and Eleonora stoves, all with a Ø 130 mm flue outlet. It integrates perfectly with all linear components and accessories in the Alfonso Forni Ø 130 mm range.
Key benefits
- Smooth deflection and optimal draught: the 135° angle (45° from the vertical) reduces turbulence in the flue gas flow compared to a 90° elbow, promoting a more efficient and uniform draught.
- High-temperature resistance: AISI 304 stainless steel ensures high thermal and corrosion resistance for long-lasting durability.
- Perfect smoke seal: the male/female joint ensures a completely airtight and secure connection between the flue duct and the vertical chimney.
Installation notes: The connector must be positioned at the junction between the sub-horizontal flue and the vertical section of the chimney, ensuring the correct 135° orientation of the outlet. The use of high-temperature gaskets at the joints and fixing with certified clamps is recommended. Installation must be carried out in compliance with current UNI EN 1856 standards for solid fuel systems.
Certifications: ISO 9001:2015 certified and compliant with CE regulations. Made in Italy.
