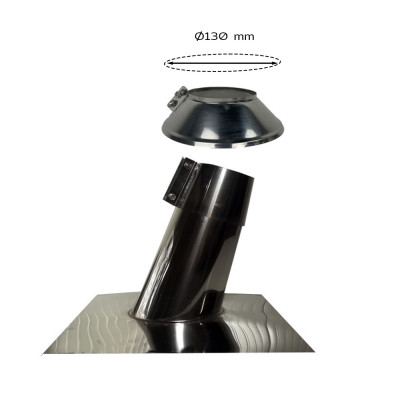

Inclined Faldale plate, 130 mm diameter

AISI 304 Stainless Steel Sloped Roof Flange, Ø130 mm – Safe Passage for Roofs with Variable Pitches

Technical specifications

• Material: AISI 304 stainless steel.
• Diameter: 130 mm.
• Thickness: 0.5 mm.
• Slope: from 5° to 45°.
• Plate dimensions: 45 cm x 45 cm.
• Welding: TIG without filler material.
• Finish: corrosion- and weather-resistant stainless steel.

Compatibility: Plate designed for use with sloping roofs and a 130 mm diameter flue. Compatible with Alfonso Forni 2-, 4- and 6-pizza wood-fired and hybrid ovens from the domestic range, and with the Alfonso Forni Esmeralda and Eleonora stoves. It integrates with flue components from the same range and with sheltered indoor or outdoor domestic installations.

Key benefits

• Adaptation to slope: fits sloping roofs from 5° to 45°, ensuring a neat and functional penetration.
• Protection of the passage: helps to limit water and wind infiltration at the flue outlet.
• Durable construction: AISI 304 stainless steel and TIG welding ensure long-lasting durability and reliability.

Installation notes: Cut a hole in the roof to the required diameter, position the sloped flashing plate and pass the flue through the centre. Check for a proper seal to prevent leaks and ensure the continuity of the flue passage. Installation must comply with the safety distances stipulated by current regulations and the manufacturer’s instructions.

Certifications: ISO 9001:2015 certified and compliant with CE regulations. Made in Italy.
