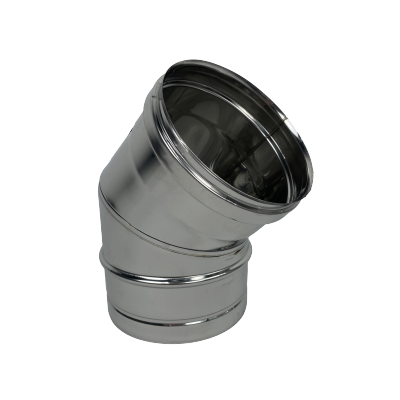

copy of 45-degree elbow bend, 150 mm diameter

45° Elbow Bend, AISI 304 Stainless Steel, Ø150 mm – Axis Deflection for Professional Ovens

Technical specifications

• Material: AISI 304 stainless steel
• Diameter: 150 mm
• Angle: 45° (2 sections)
• Thickness: 0.5 mm (5/10)
• Welding: TIG process, by fusion of adjacent flanges
• Finish: Exposed stainless steel, smooth internal and external surface
• Type: Single-wall male/female bend

Compatibility: Component designed for axis deviation in vertical and sub-horizontal sections of flue systems. Compatible with the Alfonso 4 and 10-pizza wood-fired and hybrid ovens from the Professional range, all with a Ø 150 mm connection. It integrates perfectly with all linear elements and accessories from the Alfonso Forni Ø 150 mm range.

Key benefits

• Installation flexibility: the 45° angle allows for sharper bends than the 30° curve, ideal for bypassing structural obstacles whilst maintaining efficient flue gas flow.
• High-temperature resistance: AISI 304 stainless steel ensures high thermal and corrosion resistance for long-lasting durability.
• Perfect smoke seal: the male/female joint and TIG welding ensure a completely airtight seal and optimal draught.

Installation notes: The bend must be connected to the straight sections, ensuring the correct orientation of the angle relative to the flue path. The use of high-temperature gaskets at the joints and fixing with certified clamps is recommended. Installation must be carried out in compliance with current UNI EN 1856 standards for solid fuel systems.

Certifications: ISO 9001:2015 certified and compliant with EC regulations. Made in Italy.
