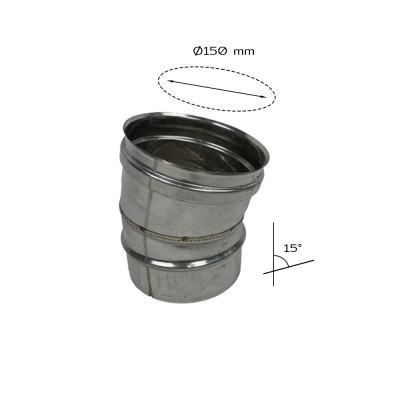

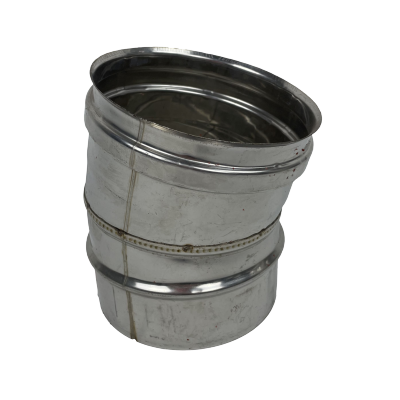

15-degree elbow bend, 150 mm diameter

15° Elbow Bend, AISI 304 Stainless Steel, Ø150 mm – Slight Deflection for professional oven flue systems

Technical specifications

• Material: AISI 304 stainless steel
• Diameter: 150 mm
• Angle: 15°
• Thickness: 0.5 mm (5/10)
• Welding: TIG process, by fusion of adjacent edges without filler material
• Finish: Polished stainless steel, resistant to high temperatures
• Type: Single-wall male/female bend

Compatibility: Component designed for slight axis deviations in the vertical and sub-horizontal sections of flue systems. Compatible with the Alfonso 4 and 10-pizza wood-fired and hybrid ovens from the Professional range, all with a Ø 150 mm connection. It integrates perfectly with all the linear elements and accessories of the Alfonso Ø 150 mm oven range.

Key benefits

• Smooth and precise deflection: the reduced angle of 15° is ideal for minor corrections to the flue path, minimising draught loss and ensuring maximum smoke flow.
• High-temperature resistance: AISI 304 stainless steel ensures high thermal and corrosion resistance for long-lasting durability.
• Perfect smoke seal: the male/female joint and TIG welding ensure a completely airtight seal and optimal draught.

Installation notes: The bend must be connected to the straight sections, ensuring the correct orientation of the angle relative to the flue path. The use of high-temperature gaskets at the joints and fixing with certified clamps is recommended. Installation must be carried out in compliance with current UNI EN 1856 standards for solid fuel systems.

Certifications: ISO 9001:2015 certified and compliant with EC regulations. Made in Italy.
