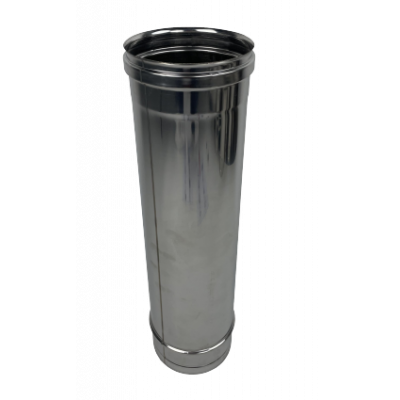

Flue pipe, 500 mm long, 130 mm diameter

AISI 304 Stainless Steel Flue Pipe, Ø130 mm – Straight Section, H 495 mm, for Wood-Fired Ovens

Technical specifications

• Material: AISI 304 stainless steel
• Diameter: 130 mm
• Height: 495 mm
• Thickness: 0.5 mm (5/10)
• Finish: Exposed stainless steel, smooth surface inside and out
• Type: Single-wall linear element

Compatibility: Linear element designed for use in vertical and sub-horizontal sections of flue systems. Compatible with Alfonso Forni 2-, 4- and 6-pizza wood-fired and hybrid ovens from the domestic range, and Esmeralda and Eleonora stoves, with a Ø 130 mm flue connection. Suitable for domestic installations in both indoor and outdoor environments.

Key benefits

• High-temperature resistance: AISI 304 stainless steel guarantees high resistance to corrosion and combustion gas temperatures, ensuring long-lasting durability.
• Optimal smoke containment: the 0.5 mm walls ensure efficient smoke channelling without leakage and a constant draught.
• Easy installation: the straight section connects easily to the other components of the Alfonso Forni Ø 130 mm flue system, reducing installation time.

Installation notes: The 495 mm section is compatible with all other sections of the Alfonso Forni Ø 130 mm flue pipe range. Before installation, check that the flue route complies with the safety distances required by current regulations and that the draught is adequate for the oven’s power. For sub-horizontal sections, a minimum upward slope of 3% towards the chimney is recommended.

Certifications: ISO 9001:2015 certified and compliant with EC regulations. Made in Italy.
