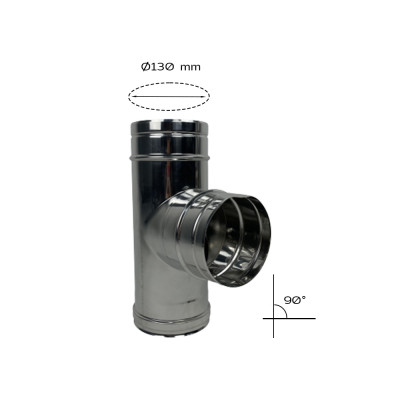

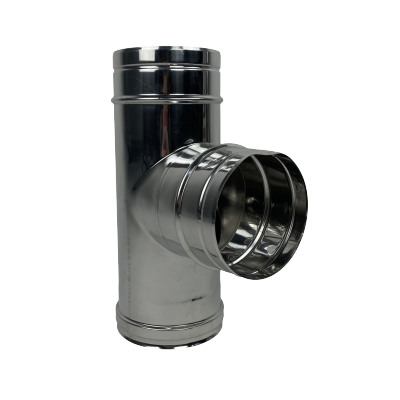

Braga 90-degree T-joint, extruded, 130 mm diameter
90° T-joint made from extruded AISI 304 stainless steel, diameter 130 mm, thickness 0.5 mm. A 90° connecting element between the flue and the vertical chimney, produced by extruding a linear component. Compatible with Alfonso Forni wood-fired and hybrid ovens for 2, 4 and 6 pizzas from the domestic range and with the Alfonso Forni Esmeralda and Eleonora stoves. ISO 9001:2015 certified, CE compliant. Made in Italy.
PayPal (SSL) - Bank/postal transfer and instalments
Throughout Italy and around the world
Handcrafted products without intermediate steps
Braga 90° T-Joint, Extruded AISI 304 Stainless Steel, Ø130 mm – Chimney Connection for Wood-Burning Ovens and Stoves
Technical specifications
- Material: AISI 304 stainless steel
- Diameter: 130 mm
- Angle: 90°
- Thickness: 0.5 mm (5/10)
- Manufacturing process: Extruded from a linear element (straight fitting)
- Finish: Polished stainless steel, heat-resistant
- Type: Single-wall male/female T-joint
Compatibility: Connection element designed to connect the flue to the vertical chimney at a 90° angle. Compatible with Alfonso Forni 2-, 4- and 6-pizza wood-fired and hybrid ovens from the domestic range and with the Alfonso Forni Esmeralda and Eleonora stoves, all with a Ø 130 mm flue outlet. It integrates perfectly with all linear elements and accessories from the Alfonso Forni Ø 130 mm range.
Key benefits
- Precise and robust connection: the T-shape, achieved through extrusion, guarantees perfectly regular geometry, ensuring a solid, leak-free connection between the flue and the chimney.
- High-temperature resistance: AISI 304 stainless steel ensures high thermal and corrosion resistance for long-lasting durability.
- Perfect smoke seal: the male/female joint ensures a completely airtight seal and optimal draught in all conditions of use.
Installation notes: The connector must be positioned at the junction between the sub-horizontal flue and the vertical section of the chimney, ensuring the correct 90° orientation of the outlet. The use of high-temperature gaskets at the joints and fixing with certified clamps is recommended. Installation must be carried out in accordance with current UNI EN 1856 standards for solid fuel systems.
Certifications: ISO 9001:2015 certified and compliant with EC regulations. Made in Italy.
