Fixed Wall Bracket

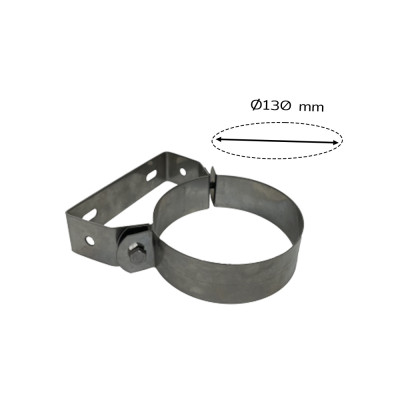

Fixed Stainless Steel Wall Bracket Ø130 mm – Support and Stability for Chimney Flue

Technical specifications

• Material: Stainless steel.
• Diameter: 130 mm.
• Thickness: 0.5 mm.
• Type: fixed wall bracket.
• Function: support and securing of the flue.
• Finish: resistant to high temperatures and weathering.

Compatibility: The fixed wall bracket is designed to secure the flue duct and chimney in both vertical and horizontal sections. It is compatible with Alfonso Forni’s 2-, 4- and 6-pizza wood-fired and hybrid ovens from the domestic range, and with the Alfonso Forni Esmeralda and Eleonora stoves, in systems with a Ø130 mm flue. It integrates with the components of the Alfonso Forni flue system.

Key benefits

• System stability: reduces flue pipe sway and improves support.
• Secure fixing: keeps the flue pipe firmly anchored to the masonry.
• Durable material: stainless steel ensures long-term resistance to corrosion and heat.

Installation notes: The wall bracket must be installed on the wall at the point where the flue section is to be supported, ensuring that the clamp wraps correctly around the pipe. We recommend installing a wall clamp every metre of flue to ensure uniform and stable anchoring along the length of the system. Installation must be carried out in accordance with the manufacturer’s instructions and in compliance with current regulations.

Certifications: ISO 9001:2015 certified and compliant with CE regulations. Made in Italy.
