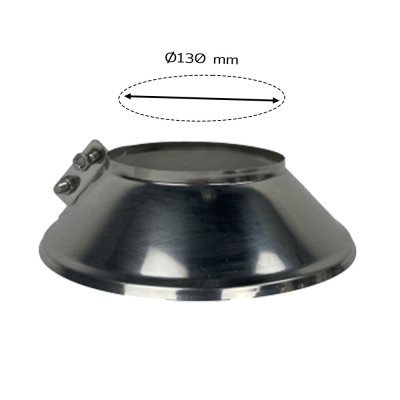

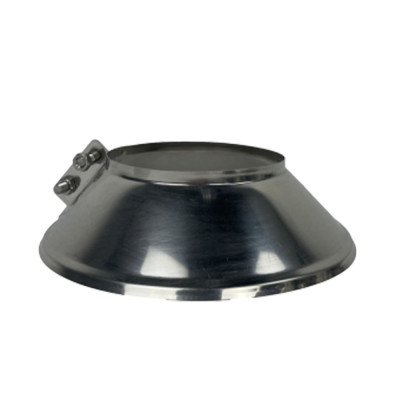

Conical collar, diameter 130 mm

AISI 304 Stainless Steel Conical Collar, Ø130 mm – Flue Penetration Waterproofing and Protection

Technical specifications

• Material: AISI 304 stainless steel.
• Diameter: 130 mm.
• Thickness: 0.5 mm.
• Type: conical collar / conical flashing.
• Function: protection and waterproofing of the roof/eaves penetration point.
• Finish: weather-resistant and high-temperature-resistant stainless steel.

Compatibility: The conical collar is designed for the passage of the flue through roofs, roofing or eaves, where it is necessary to properly seal the point of intersection between the pipe and the structure. It is compatible with Alfonso Forni 2-, 4- and 6-pizza wood-fired and hybrid ovens from the domestic range and with the Alfonso Forni Esmeralda and Eleonora stoves, in systems with a Ø130 mm flue. It integrates with the components of the Alfonso Forni flue system.

Key benefits

• Effective waterproofing: protects the critical point where the pipe passes through the roof, reducing the risk of leaks.
• Water drainage: the conical shape helps rainwater run off towards the outside, away from the flue.
• Protective barrier: seals the gap between the flue and the structure, improving the overall protection of the system.

Installation notes: The conical collar must be positioned where the flue pipe passes through the roof or roof deck. It is important that it adheres correctly to the surface and is installed in such a way as to facilitate water drainage outwards. Installation must be carried out in accordance with the manufacturer’s instructions and in compliance with current regulations.

Certifications: ISO 9001:2015 certified and compliant with EC regulations. Made in Italy.
