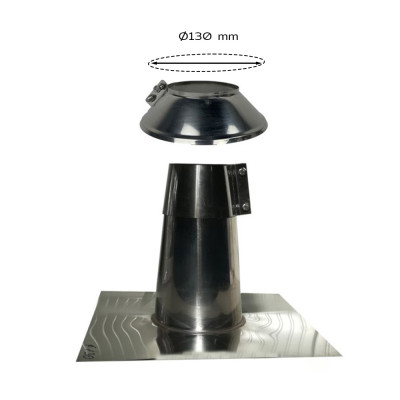

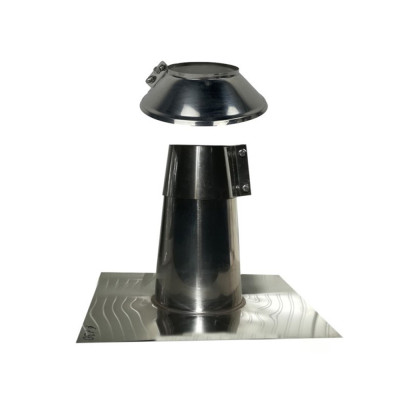

Flat, straight flange plate, 130 mm diameter

AISI 304 Stainless Steel Flat Straight Flue Plate, Ø130 mm – Safe Flue Passage

Technical specifications

• Material: AISI 304 stainless steel.
• Diameter: 130 mm.
• Thickness: 0.5 mm.
• Type: straight flashing plate for roof/roofing penetration.
• Finish: weather-resistant and high-temperature-resistant stainless steel.
• Function: flue pipe passage and protection of the penetration hole.

Compatibility: Plate designed to act as a flue penetration plate in canopies and flat roofs, allowing for the neat and safe passage of a Ø 130 mm flue. Compatible with Alfonso Forni wood-fired and hybrid ovens for 2, 4 and 6 pizzas from the domestic range and with the Alfonso Forni Esmeralda and Eleonora stoves. It integrates with the flue components of the same range and with domestic indoor or sheltered installations.

Key benefits

• Protection of the penetration hole: helps to finish off the roof penetration, reducing the risk of leaks and misalignment.
• Neat installation: facilitates the fitting of the flue at the external outlet point.
• Durable material: AISI 304 stainless steel ensures resistance to corrosion and weathering.

Installation notes: Cut the hole in the roof to the required diameter, position the plate and insert the truncated cone welded to the base, then pass the flue through to the intended point. Always check for a proper seal and ensure compliance with the safety distances required by current regulations. Installation must be carried out by qualified personnel or in accordance with the manufacturer’s instructions.

Certifications: ISO 9001:2015 certified and compliant with EC regulations. Made in Italy.
