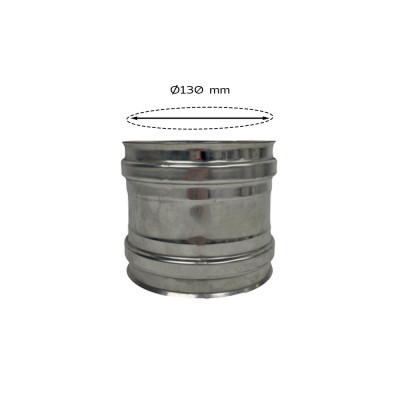

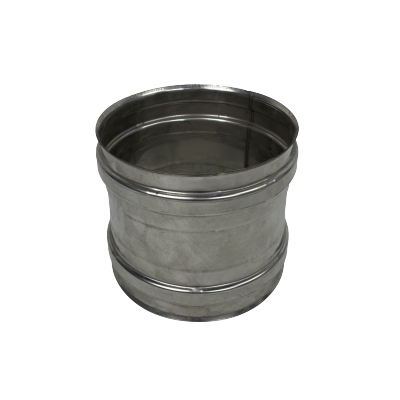

Female-to-female coupling, 130 mm diameter

AISI 304 Stainless Steel Female/Female Sleeve, Ø130 mm – Male Pipe Connection for Wood-Burning Ovens and Stoves

Technical specifications

• Material: AISI 304 stainless steel.
• Diameter: 130 mm.
• Thickness: 0.5 mm.
• Type: double female (F/F) sleeve.
• Welding: TIG process without filler material.
• Finish: polished stainless steel, resistant to high temperatures and weathering.

Compatibility: The F/F sleeve is designed to connect two consecutive male elements in the flue pipe system. Compatible with Alfonso Forni wood-fired and hybrid ovens for 2, 4 and 6 pizzas in the domestic range, and with the Alfonso Forni Esmeralda and Eleonora stoves. It integrates with all straight sections, bends, connectors and accessories in the Alfonso Forni Ø 130 mm range.

Key benefits

Versatile connection: allows two consecutive male pipes to be joined without the need for additional adapters, simplifying the design of the flue system.
• Ideal starting element: acts as a direct connector to the oven or stove outlet, immediately providing a female connection for the first section of the flue.
• Strength and seal: AISI 304 stainless steel and TIG welding ensure reliability, durability and a complete seal against fumes at the joint.

Installation notes: Insert the two male pipes into the respective female sockets of the sleeve, checking for correct alignment and insertion depth. We recommend using the appropriate gaskets and securing with Alfonso Forni Ø 130 mm pipe clamps on both sides. Installation must be carried out in compliance with current UNI EN 1856 standards for solid fuel systems.

Certifications: ISO 9001:2015 certified and compliant with EC regulations. Made in Italy.
