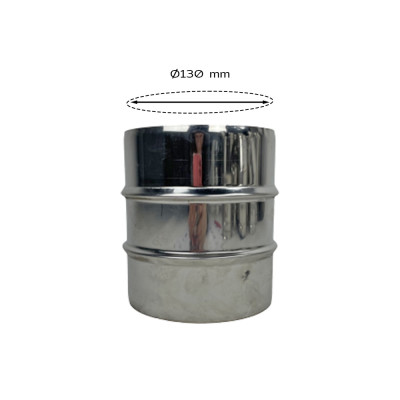

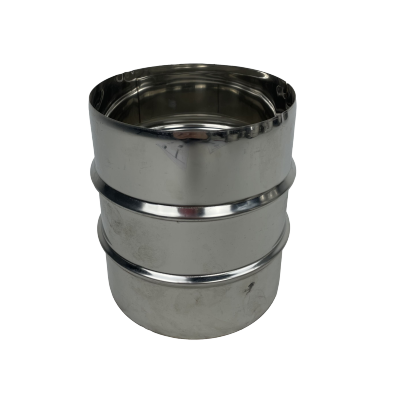

Male-to-male coupling, 130 mm diameter

AISI 304 Stainless Steel Male/Male Sleeve, Ø130 mm – Female Pipe Connection for Wood-Burning Ovens and Stoves

Technical specifications

• Material: AISI 304 stainless steel.
• Diameter: 130 mm.
• Thickness: 0.5 mm.
• Type: double male (M/M) sleeve.
• Welding: TIG process without filler material.
• Finish: polished stainless steel, resistant to high temperatures and weathering.

Compatibility: The M/M sleeve is designed to connect two consecutive female elements in the flue pipe system. It is compatible with Alfonso Forni’s 2-, 4- and 6-pizza wood-fired and hybrid ovens from the domestic range, and with the Alfonso Forni Esmeralda and Eleonora stoves. It integrates with all straight sections, bends, connectors and accessories in the Alfonso Forni Ø 130 mm range.

Key benefits

• Versatile connection: allows two female pipes to be joined simply and precisely.
• Stable and precise connection: ensures correct assembly, maintaining continuity and strength in the flue path.
• Strength and seal: AISI 304 stainless steel and TIG welding ensure reliability, durability and a tight seal at the joint.

Installation notes: Insert the sleeve into the female sockets of the elements to be connected, checking for correct alignment and insertion depth. We recommend using the appropriate gaskets and securing with Alfonso Forni Ø 130 mm pipe clamps on both sides. Installation must be carried out in compliance with current UNI EN 1856 standards for solid fuel systems.

Certifications: ISO 9001:2015 certified and compliant with EC regulations. Made in Italy.
