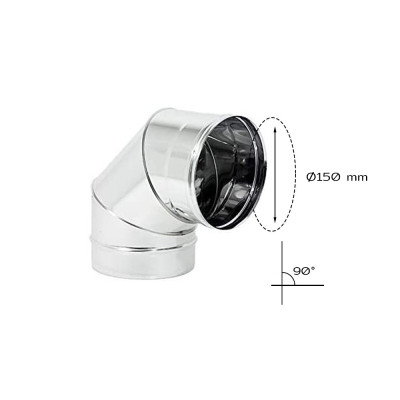

90-degree elbow, 150 mm diameter

90° Stainless Steel Elbow (AISI 304) Ø150 mm – Offset Elbow for professional oven flue systems

Technical specifications

• Material: AISI 304 stainless steel
• Diameter: 150 mm
• Angle: 90° (4 sections)
• Thickness: 0.5 mm (5/10)
• Welding: TIG process, by fusion of adjacent flanges
• Finish: Exposed stainless steel, smooth internal and external surface
• Type: Single-wall male/female elbow

Compatibility: Component designed for axis deviation in vertical and sub-horizontal sections of flue systems. Compatible with Alfonso Forni wood-burning and hybrid stoves from the professional range. Integrates perfectly with all linear elements and accessories from the Alfonso Forni Ø 150 mm range. Suitable for solid fuel (wood).

Key benefits

• Maximum installation flexibility: the 90° angle allows for orthogonal deviations of the flue duct, ideal for sharp changes of direction where architectural or structural constraints are present.
• High-temperature resistance: AISI 304 steel guarantees high thermal and corrosion resistance for long-lasting durability.
• Perfect smoke seal: the male/female joint and TIG welding ensure a completely airtight seal and optimal draught.

Installation notes: The bend must be connected to the straight sections, ensuring the correct orientation of the angle relative to the flue path. The use of high-temperature gaskets at the joints and fixing with certified clamps is recommended. Installation must be carried out in compliance with current UNI EN 1856 standards for solid fuel systems.

Certifications: ISO 9001:2015 certified and compliant with EC regulations. Made in Italy.
