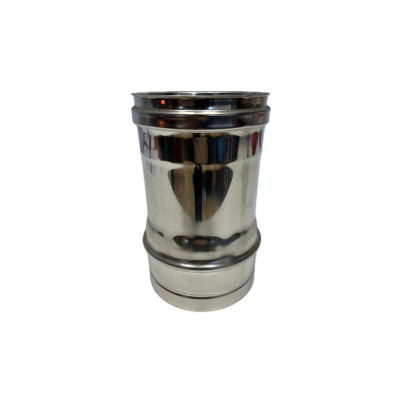

120 mm to 130 mm male/female concentric reducer

AISI 304 Stainless Steel Male/Female Concentric Reducer, Ø120 mm to Ø130 mm – Flue Pipe Adapter

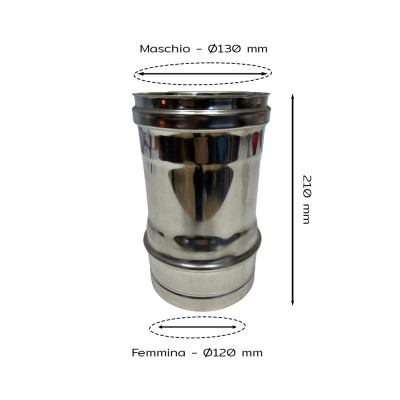

Technical specifications

• Material: AISI 304 stainless steel.
• Inlet diameter: 120 mm.
• Outlet diameter: 130 mm.
• Thickness: 0.5 mm.
• Element height: 210 mm.
• Type: male/female concentric reducer.
• Finish: stainless steel resistant to high temperatures and weathering.

Compatibility: Connecting element designed to join two sections of flue with different diameters, allowing the transition from Ø120 mm to Ø130 mm. Compatible with Alfonso Forni wood-fired and hybrid ovens for 2, 4 and 6 pizzas from the domestic range, and with the Alfonso Forni Esmeralda and Eleonora stoves, when it is necessary to adapt the flue system to the correct diameter of the Ø130 mm range. It integrates with the other elements of the Alfonso Forni flue.

Key benefits

• Precise adaptation: allows connection between two different diameters whilst maintaining the continuity of the system.
• Reliable seal: the concentric structure ensures a stable and neat connection between the components.
• Durable material: AISI 304 stainless steel ensures durability, corrosion resistance and consistent performance over time.

Installation notes: The concentric reducer must be inserted at the transition point between the Ø120 mm and Ø130 mm sections, ensuring the correct orientation of the male/female connections. It is recommended to check the alignment of the components and to secure the joint using the accessories provided for the flue system. Installation must comply with current regulations and the manufacturer’s instructions.

Certifications: ISO 9001:2015 certified and compliant with EC regulations. Made in Italy.
