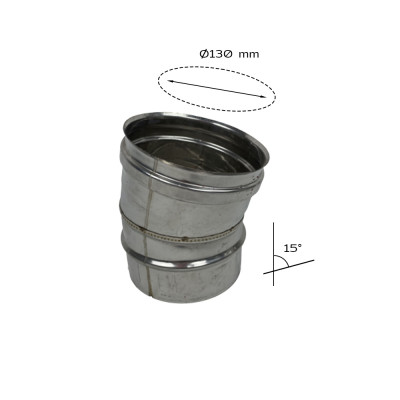

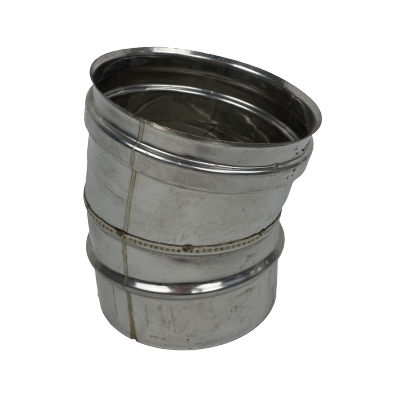

15-degree elbow bend, 130 mm diameter
15° elbow bend made from AISI 304 stainless steel, diameter 130 mm, thickness 0.5 mm. Ideal for slight changes in direction in flue systems for wood-fired ovens and cookers. Compatible with Alfonso Forni 2-, 4- and 6-pizza wood-fired and hybrid ovens from the domestic range, and with the Alfonso Forni Esmeralda and Eleonora stoves. ISO 9001:2015 certified, CE compliant. Made in Italy.
PayPal (SSL) - Bank/postal transfer and instalments
Throughout Italy and around the world
Handcrafted products without intermediate steps
15° Elbow Bend, AISI 304 Stainless Steel, Ø130 mm – Slight Bend for Wood-Burning Ovens and Stoves
Technical specifications
- Material: AISI 304 stainless steel
- Diameter: 130 mm
- Angle: 15°
- Thickness: 0.5 mm (5/10)
- Welding: TIG process, by fusion of adjacent edges without filler material
- Finish: Polished stainless steel, resistant to high temperatures
- Type: Single-wall male/female bend
Compatibility: Component designed for slight axis deviations in the vertical and sub-horizontal sections of flue systems. Compatible with Alfonso Forni 2-, 4- and 6-pizza wood-fired and hybrid ovens from the domestic range and with the Alfonso Forni Esmeralda and Eleonora stoves, all with a Ø 130 mm flue connection. It integrates perfectly with all the straight sections and accessories in the Alfonso Forni Ø 130 mm range.
Key benefits
- Smooth and precise deflection: the reduced angle of 15° is ideal for minor adjustments to the flue path, minimising draught loss and ensuring maximum smoke flow.
- High-temperature resistance: AISI 304 stainless steel ensures high thermal and corrosion resistance for long-lasting durability.
- Perfect smoke seal: the male/female joint and TIG welding ensure a completely airtight seal and optimal draught.
Installation notes: The bend must be connected to the straight sections, ensuring the correct orientation of the angle relative to the flue path. The use of high-temperature gaskets at the joints and fixing with certified clamps is recommended. Installation must be carried out in compliance with current UNI EN 1856 standards for solid fuel systems.
Certifications: ISO 9001:2015 certified and compliant with EC regulations. Made in Italy.
